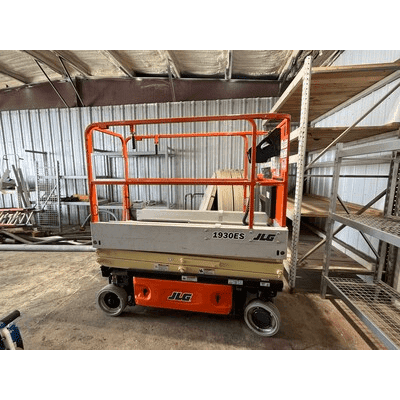

JLG LIFT 19'

SPECIFICATIONS:

Platform Height: 19 ft / 5.79 m

Machine Width: 2 ft 8 in. / 0.81 m

Working Height: 25 ft / 7.62 m

Brakes Multi-Disc Friction

Capacity - Hydraulic Reservoir 4 gal. / 15.14 L

Hydraulic Pump Fixed Displacement Gear

Machine Weight 3450 lb / 1564.89 kg

Maximum Ground Bearing Pressure 114 psi / 7.98 Kg/cm2

Ground Clearance 3 in. / 0.07 m

Machine Height 6 ft 11 in. / 2.1 m

Machine Height - Rails Folded 5 ft 4 in. / 1.63 m

Machine Length 5 ft 9 in. / 1.74 m

Machine Width 2 ft 8 in. / 0.81 m

Platform Extension Length 3 ft / 0.91 m

Platform Height - Lowered 3 ft 3 in. / 0.98 m

Platform Railing Height 3 ft 7 in. / 1.1 m

Platform Size 25.4in x 62.7in

Tire Size 12.7 x 1.4

Wheelbase 4 ft 5 in. / 1.35 m

Must be 18 year or older to operate.
